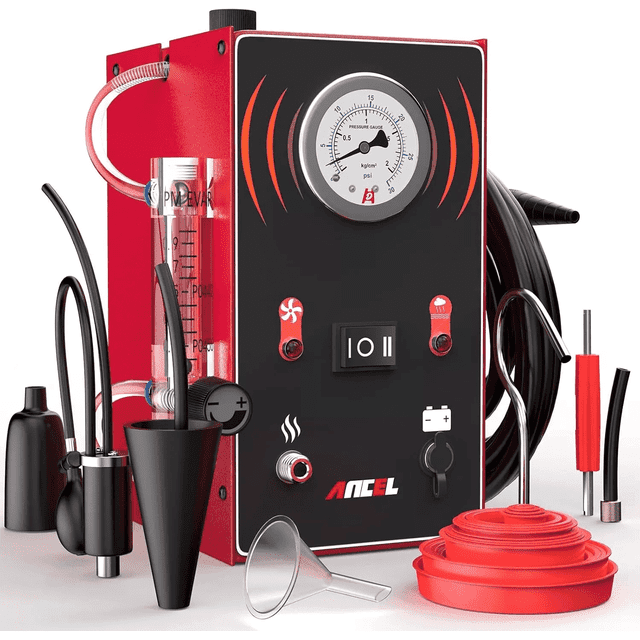

ANCEL S300 Smoke Leak Detector EVAP System Automotive Machine Vacuum Diagnostic Tool Tester

Name: ANCEL S300 Smoke Leak Detector EVAP System Automotive Machine Vacuum Diagnostic Tool Tester
Brand: ANCEL
SKU: 3170271580
Price: 125.59 USD
Availability: InStock
Rating: 4.7 (29 reviews)

29 reviews

About this item

Dual Mode
No need to buy extra air compressor
Air Mode: Air mode can help you test whether there is a leak in the pipe by injecting air into the pipe, and judge by the sound made when the air leaks
Own a S300 air conditioning detector, you don't have to buy additional air compressor or air pump, which makes your diagnosis easy and cost-effective
Smoke Mode: Smoke mode help you locate the leak accurately through the visible smoke. The smoke can be produced within seconds, dramatically reducing diagnostic time
Built in Air Pump
No air compressor needed. Just connect staright to your vehicle's 12V battery and generate smoke in seconds
Pressure Gauge
No Leak: When the value of the pressure gauge remains unchanged, it indicates that there is no leakage in the system
Small Leak: When the value of the pressure gauge drops, it indicates a small leak in the system
Massive Leak: When the value of the pressure gauge reaches zero, it indicates a massive leak in the system
Adjustable Flow Meter Air Flow meter with ajustable button, easy to control the smoke effect
Wide Coverage
Suitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and speedboats, etc
Using together with automotive diagnostic tool, you can find the vehicle problem accurately and diagnose fault
Built in Air Pump: No air compressor needed. Just connect staright to your vehicle's 12V battery and generate smoke in seconds
Adjustable Flow Meter
Air Flow meter with ajustable button, easy to control the smoke effect
Turn Off the ignition of the vehicle
Leak Test of Vehicle Systems Requires the Engine to Be Off
Dismantle the air filter and the throttle connections
Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake
Adapter into the opening
Connect the Power Cord to 12V vehicle battery
Now the Power LED would be ON, if else check the power supply
Introduce the smoke nozzle into the system via the Adapter Cone
Press Air Control Switch, wait for 30 seconds until the system is pressurized
Pressure Gauge and Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge and Flow Meter
Press Smoke Control Switch, unplug and Plug back the smoke nozzle back into the Cone Adapter when there's obvious smoke coming out of the smoke nozzle
The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist
After test, press Smoke Control Switch again to stop the unit from generating smoke and press Air Control Switch to stop generating pressurized air
Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in Upright position only. Do Not lay it down
